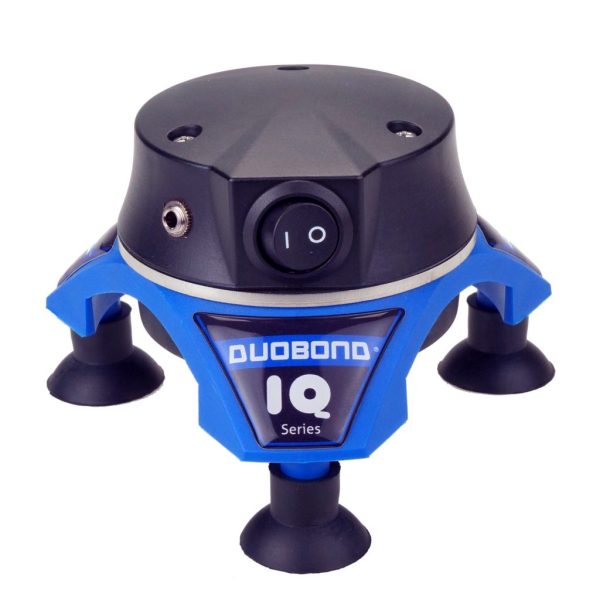

The smart wireless UV curing LED lamp for Duobond UV resin & Impact-Filler
This wireless LED UV-lamp, is an alternative to the traditional UV tube light. As it runs on a standard rechargeable 9V battery it is wireless which makes windshieldrepair so much more easy as the posiblity of damaging paint reduces a lot. It also gives the mechanic freedom to work in any situation. With the tripod setting combined with the suctioncaps it is always fixed on the windshield with the correct distance in relation to the beam angle of the 7 LED’s.
The wavelenght and amount of UV-radiation needed by the Duobond UV-resin and Impact-filler has been the starting point of developing this UV-lamp. The requested low wavelength and optimal design of the power suply on the circuitboard prevents any heat production. Heat production has a negative influence on the refraction index and quality of the cured UV-resin in the end. Which makes the repair more noticable and decreases the shear strength of the repair which increases the chance of tearing the glass as unwanted result. Also heat decreases the lifespan of a circuitboard itself.
The built-in buzzer produces an audible warning when the LED UV-lamp is on. A signal sounds every ten seconds, and once the optimal curing time is due, the lamp switches off automatically and gives an audible signal repeatingly that it is ready. This limits the required amount energy usage and loss of time for the mechanic as he/she is being notified on every step.
A standard 9V, 300NiMH battery can do up to 60 curings. Once the 9v battery has reached 6v the lamp stops working and can be recharged via the Duobond USB-charger. The USB charger runs on standard 5v USB outputs and can charge starting from 5,2v back to 9v.
Including Duobond IQ-r USB battery charger.
